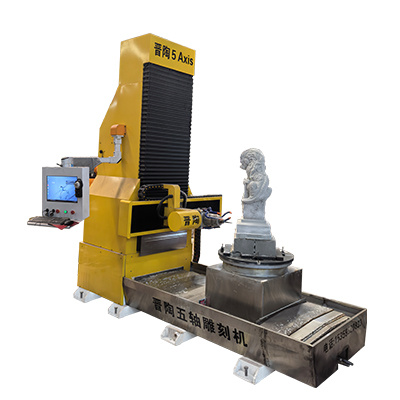

Small five-axis carving machine
- Commodity name： Small five-axis carving machine
- Item No： JTRF-1050-1D
Email：joymy@jintaocnc.com
Category：
Detailed Introduction
|
Small five-axis engraving machine
|
|
|
|
|
Model
|
JTRF-1050-1D
|
|
Effective travel
|
X: 800，Y: 1200, Z: 1200
|
|
Processing size
|
Diameter 500*Height 1000
|
|
Head swing travel
|
±90 degrees
|
|
Turntable travel
|
±360 degrees
|
|
Processing speed
|
15000mm/min
|
|
Spindle power
|
7.5KW JinTao stone material dedicated spindle (water-cooled variable frequency)
|
|
Spindle speed
|
0-24000r/min (adjustable)
|
|
Inverter power
|
7.5KW
|
|
Working voltage
|
AC380V/50HZ
|
|
Drive motor
|
Wezhi servo motor XYZ 1.5KW，B axis 2.3KW，C axis 750W
|
|
Head swing reducer
|
A axis Zhuolan RV cycloidal pin reducer
|
|
Guide rail
|
X axis 25 rail, Y axis 35 double rail, Z axis 30 double rail
|
|
Screw
|
X axis 2510 screw, Y axis Z axis 3210 screw
|
|
Cooling system
|
CW3000 chiller
|
|
Bed and load-bearing capacity
|
High-quality bridge steel bed, stainless steel water tank
|
|
Control system
|
Weihong five-axis control system, with rtcp function
|
|
Control cabinet
|
Built-in control box
|
|
Lubrication method
|
Electric oil pump
|
|
Dust prevention
|
Stainless steel dustproof stainless steel water tank
|
|
Price
|
¥
:/EXW
|
