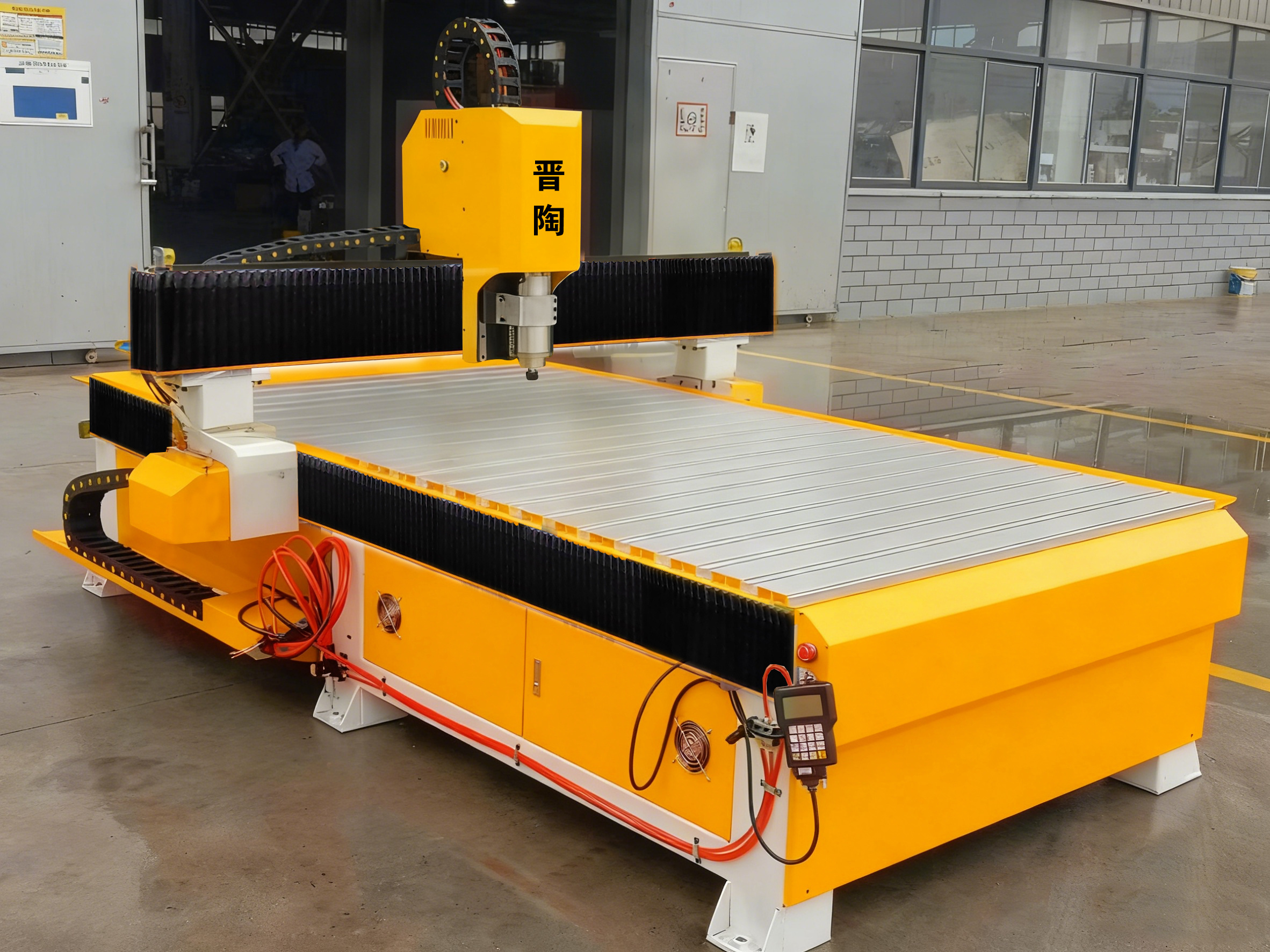

JT-1325 wood engraving machine

JT-1325 wood engraving machine

1

Size

JT-1325-1D

2

Spindle & power

3.2KW

3

Floor size

3000L*2200W*1600H(mm)

4

voltage

380v/220V/50HZ

5

Working size

1300*2500*300

6

Table material

Thickened aviation aluminum material

7

Working precision

±0.05mm

8

Repetitive positioning accuracy

±0.01mm

9

Air working speed

15m

10

Working speed

10m

11

XYZ drive way

XY rack，Z lead screw

12

Motor drive

758hybrid servo drive motor

13

Inverter

Zhongchen5.5KW/220V

14

system

DSPA11

15

Machine bed material

Tempering treatment of thickened steel pipe welding

16

Guide rail slider

Taiwan Province high-precision 25 guide rail

17

Wire cable

TRP extra-flexible shielded cable

18

Cutter size

￠4，￠6，￠5，￠10

19

Dust cover

Standard configuration

20

Container

20GP

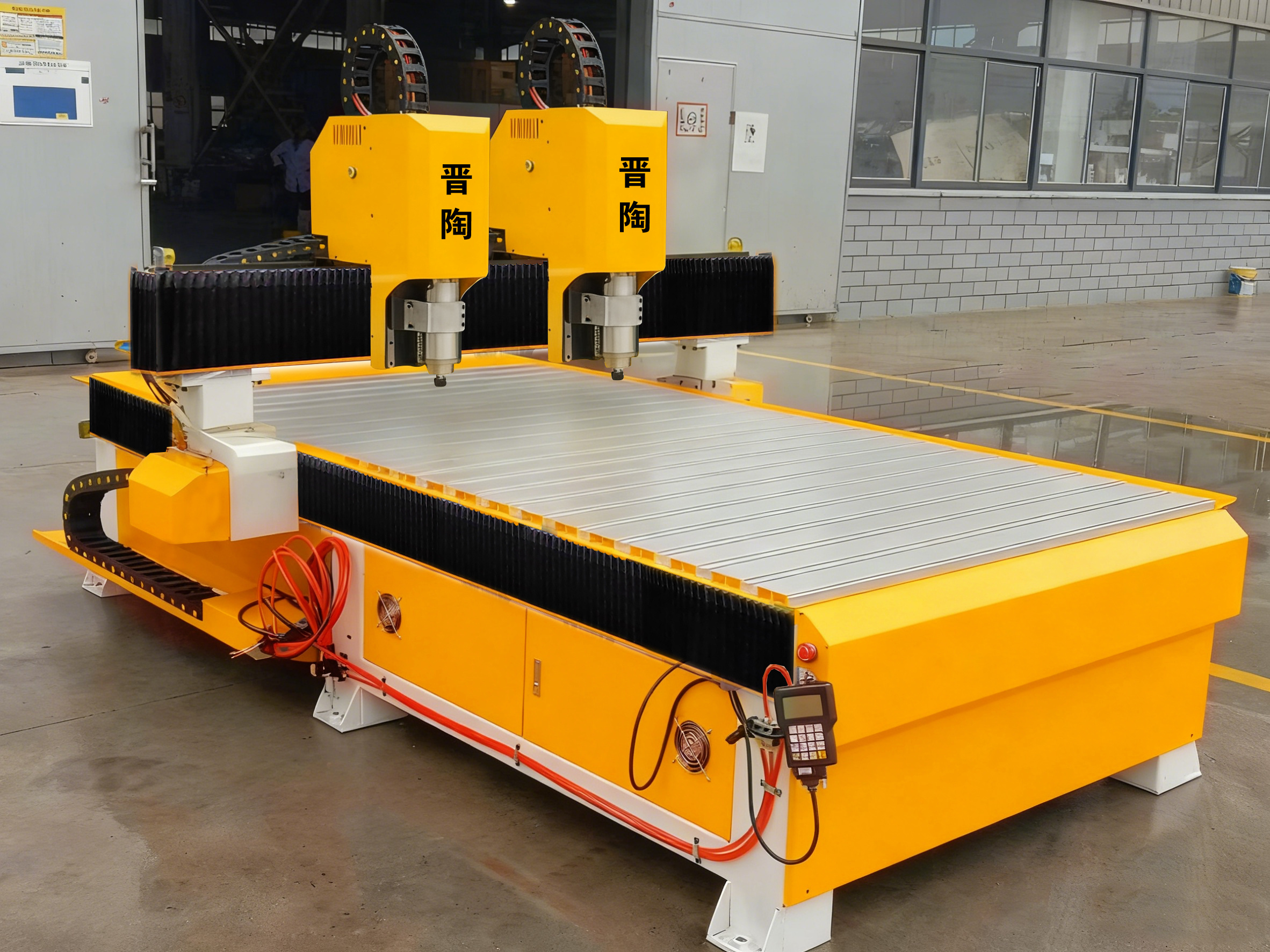

JT-1325-2D wood engraving machine

1

Size

JT-1325-2D

2

Spindle & power

3.2KW*2

3

Floor size

3000L*2200W*1600H(mm)

4

voltage

380v/220V/50HZ

5

Working size

2 heads:650*2500/1 head:900*2500mm

6

Table material

Thickened aviation aluminum material

7

Working precision

±0.05mm

8

Repetitive positioning accuracy

±0.01mm

9

Air working speed

15m

10

Working speed

10m

11

XYZ drive way

XY rack，Z lead screw

12

Motor drive

758hybrid servo drive motor

13

Inverter

Zhongchen5.5KW/220V

14

system

DSPA11

15

Machine bed material

Tempering treatment of thickened steel pipe welding

16

Guide rail slider

Taiwan Province high-precision 25 guide rail

17

Wire cable

TRP extra-flexible shielded cable

18

Cutter size

￠4，￠6，￠5，￠10

19

Dust cover

Standard configuration

20

Container

20GP
