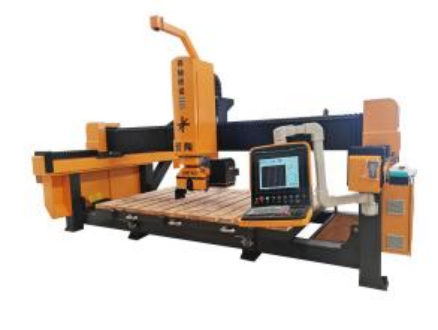

Four-Axis Bridge Cutting Machine (4+1 Version)
- Commodity name： Four-Axis Bridge Cutting Machine (4+1 Version)
- Item No： JT-3620/3220
Email：joymy@jintaocnc.com
Category：
Detailed Introduction
Four-axis bridge cutting machine (4 + 1 Version ) JT -3620/3220
|
||
|
||
Model
|
JT -3620 Four-axis (4+1) Version
|
JT-3220
|
X, Y Work Schedule
|
3600 * 2000 mm |
3200*2000 mm |
External dimensions
|
5800x3300x2580 mm /3200 mm |
5300x3300x2580 mm /3200 mm |
Saw blade motor speed
|
3,300 RPM min |
|
Hole-drilling motor speed
|
18000 Transfer / min |
|
Control System
|
Jin Tao JT TECH Self-developed system
|
|
Saw blade motor power
|
15 kw |
|
Hole-drilling motor power
|
7.5 kw |
|
Flip-over table
|
0-85° Flip Plate
|
|
Saw blade diameter
|
350/400 mm (Inner hole diameter 50 mm )
|
|
Visual system
|
Hikvision
|
|
Moving board method
|
Automatic plate transfer with suction cups (Optional, available with single or double suction cups)
|
|
Electric motor /Drive
|
Bus Absolute Value Servo Drive
|
|
Type Model
|
Customization supported
|
|
